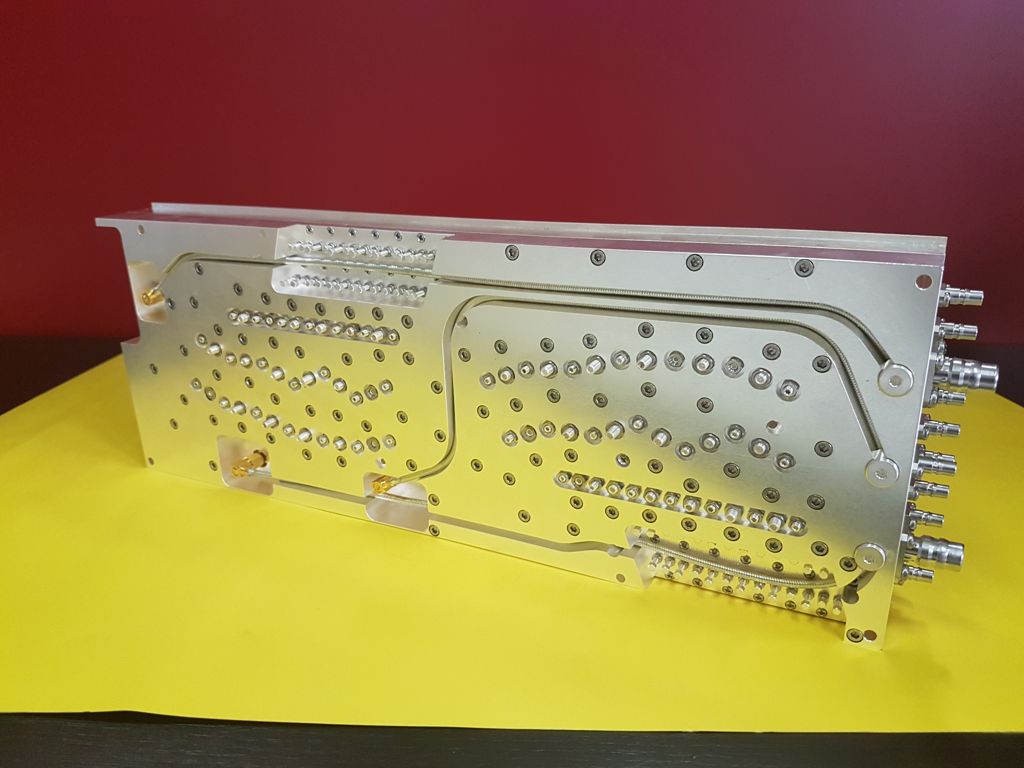

Pentaplexer

Double pentaplexer for cellular repeaters and jammers


700/800/900/1800/2100 MHz


Some of our products....

Products code Description Datasheet

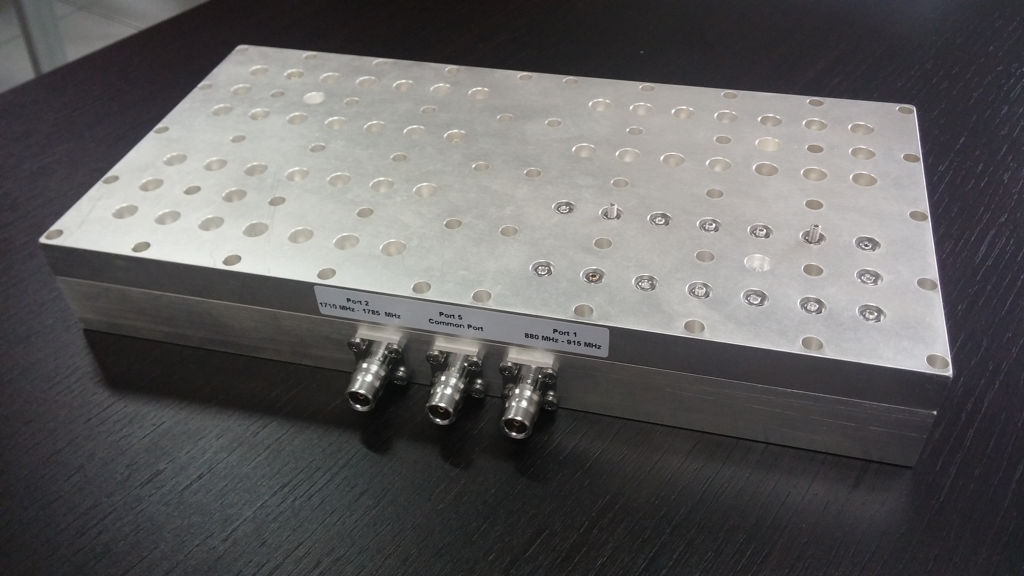

 MW-F01725-BBBT

Quadruplexer

This Quadruplexer covers the GSM, DCS, UMTS and LTE-TDD bands and guarantees a 50-dB rejection between them. Typical insertion losses are less than 1.0 dB. Compact structure and weights.

Quadruplexer

PDF

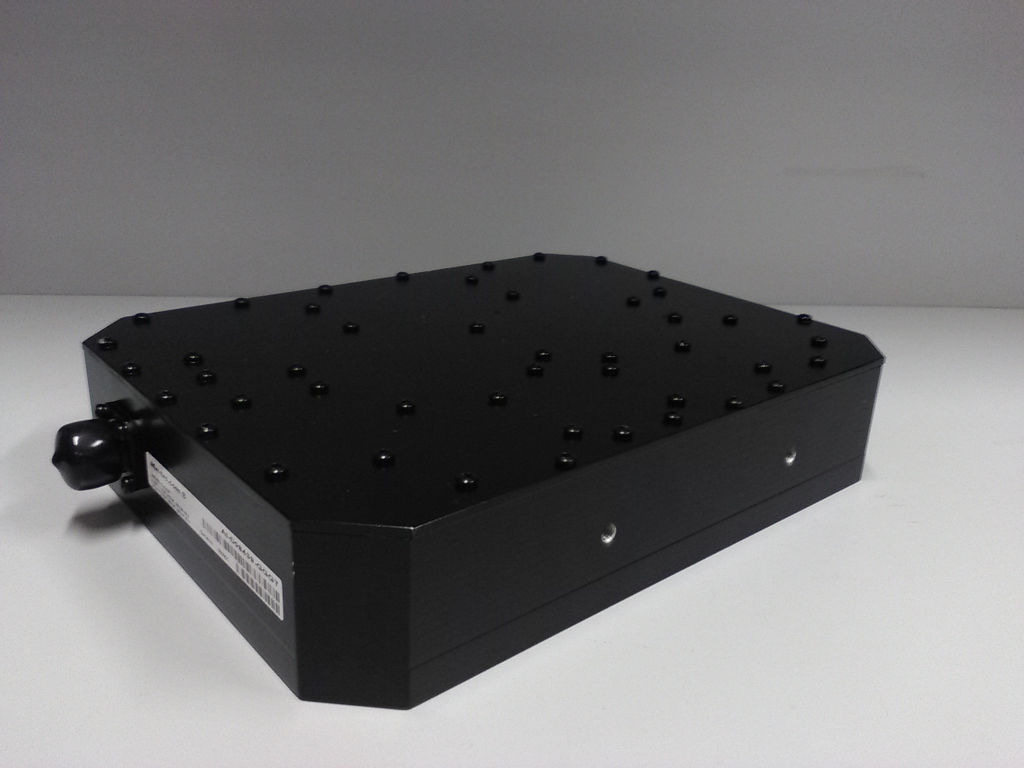

MW-F00844-GGGT





800 MHz duplexer

Low filter      819.05 - 823.85 MHz

High filter    864.05 - 868.85 MHz

High rejection



IMG 20160412 123547

 PDF

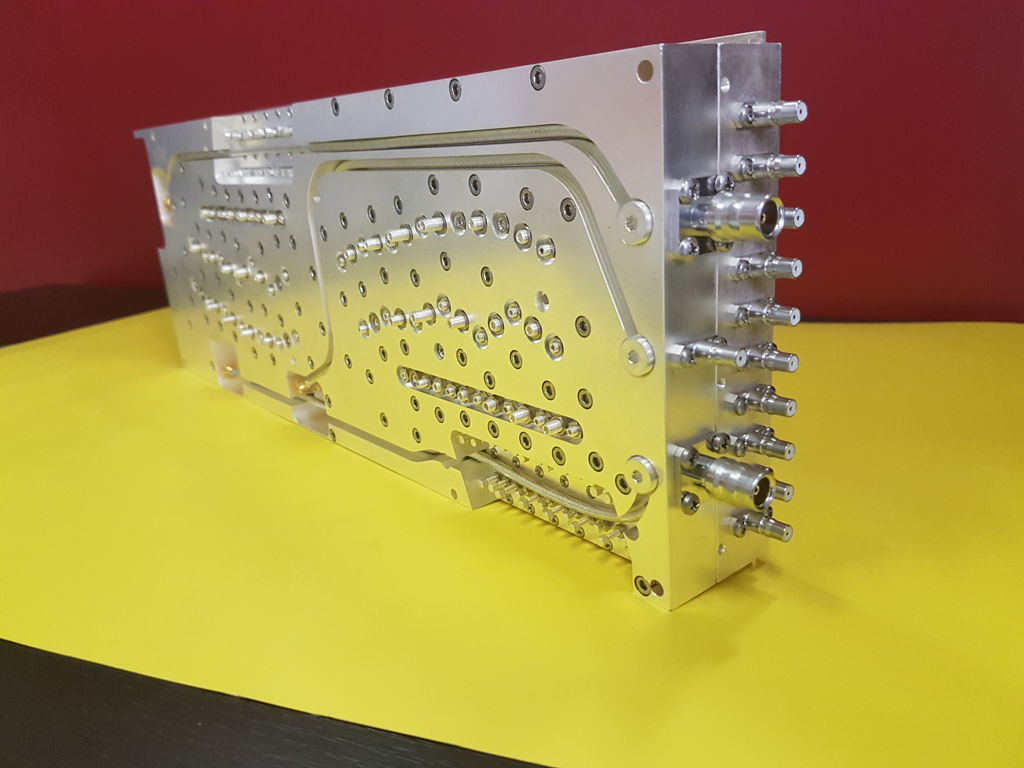

 MW-F01436-LLBT



Double pentaplexer

For Cellular Bands:   700/800/900/1800/2100 MHz
Compact, with Low IL & Very Low PIM

penta2

 PDF

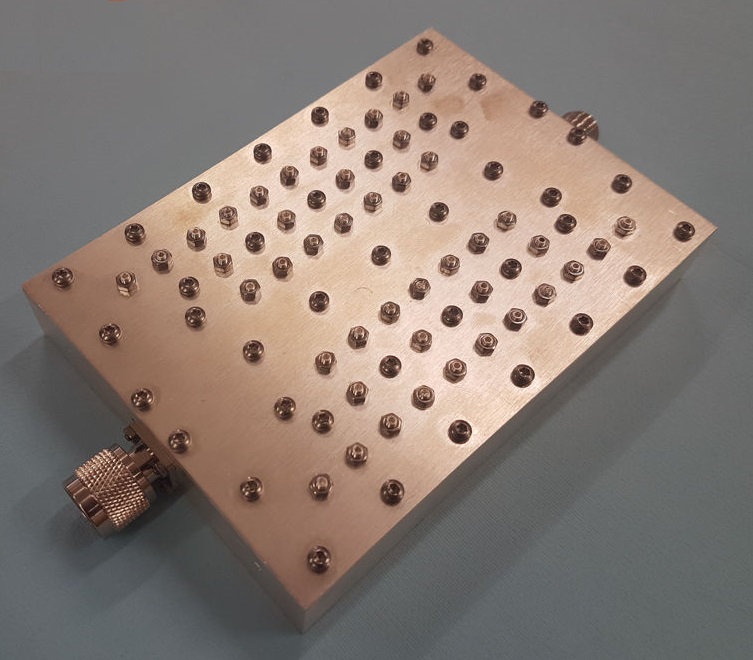

 MW-F02114-NPT



UMTS dual band filter

BW1: 1950 – 2100 MHz & BW2:  2190 – 2400 MHz
Attenuation > 40 dB between Bands


UMTS dual band filter Copia

 PDF

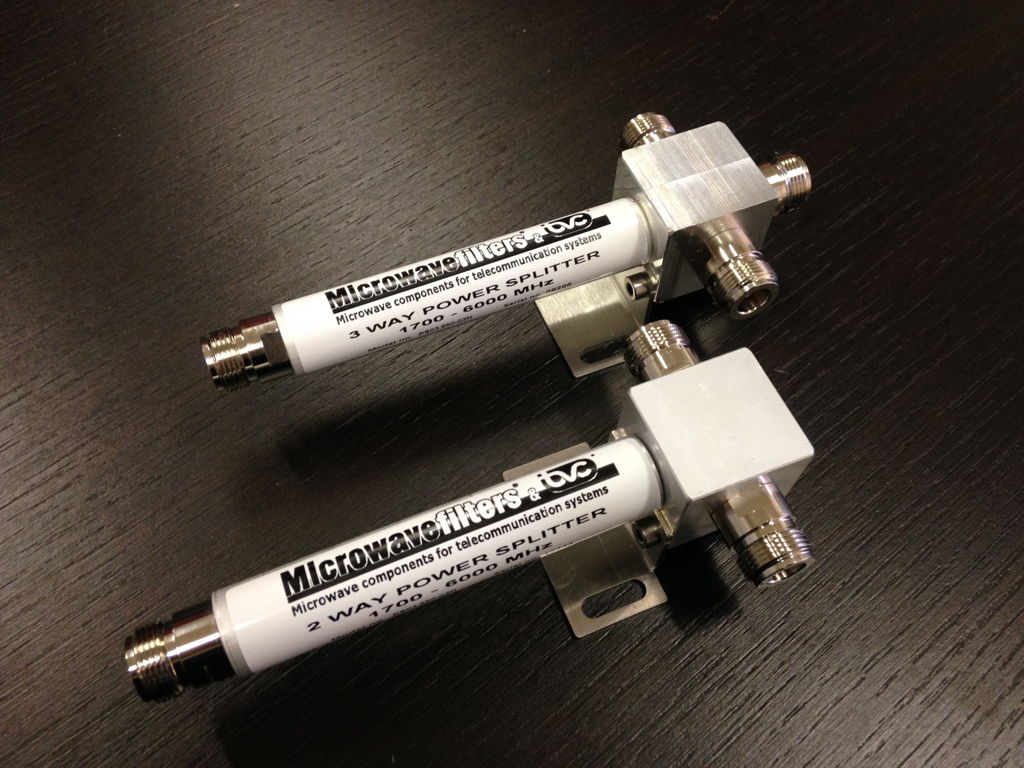

 PS03.850-02N
   PS03.850-03N
  PS03.350-04N

DAS splitters

2, 3 & 4 ways
1.7 – 6.0 GHz (2 & 3 way)
1.7 – 5.0 GHz (4 way)
500 W average power
RoHS compliant
VSWR 1.25:1 max
N connectors


DAS Splitters  PDF

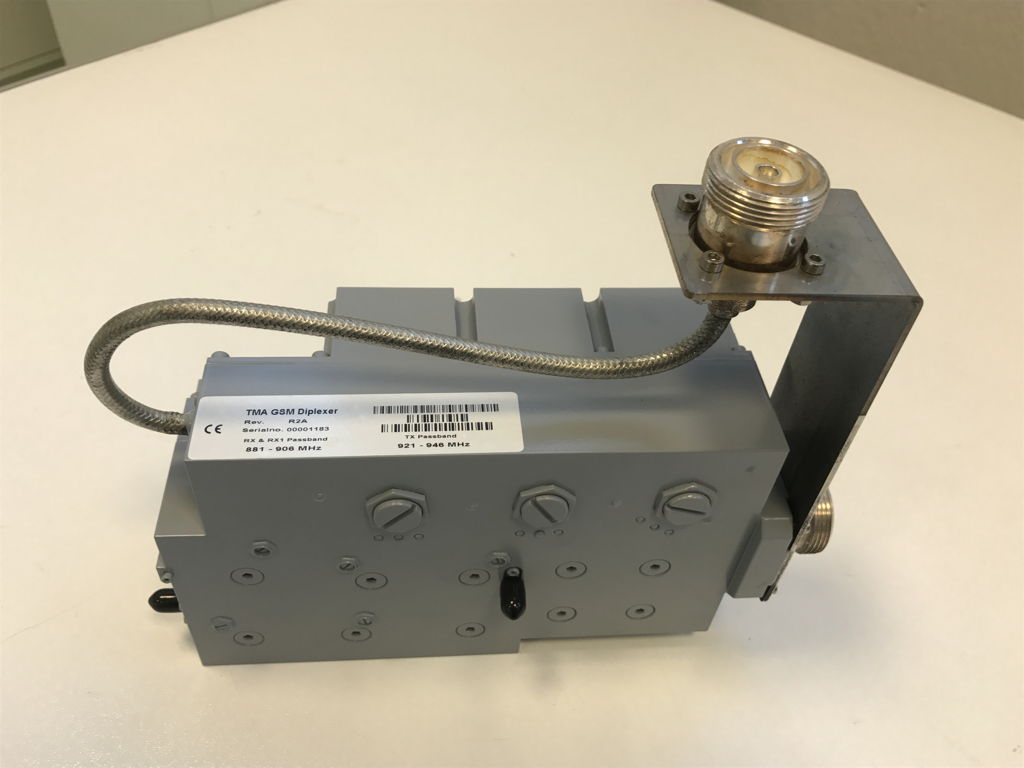

MW-D00913-DDCT

TMA GSM Diplexer with 2 RX Filters

RX & RX1 Filter : 881 – 906 MHz

TX Filter : 921 – 946 MHz


IMG 1842

PDF

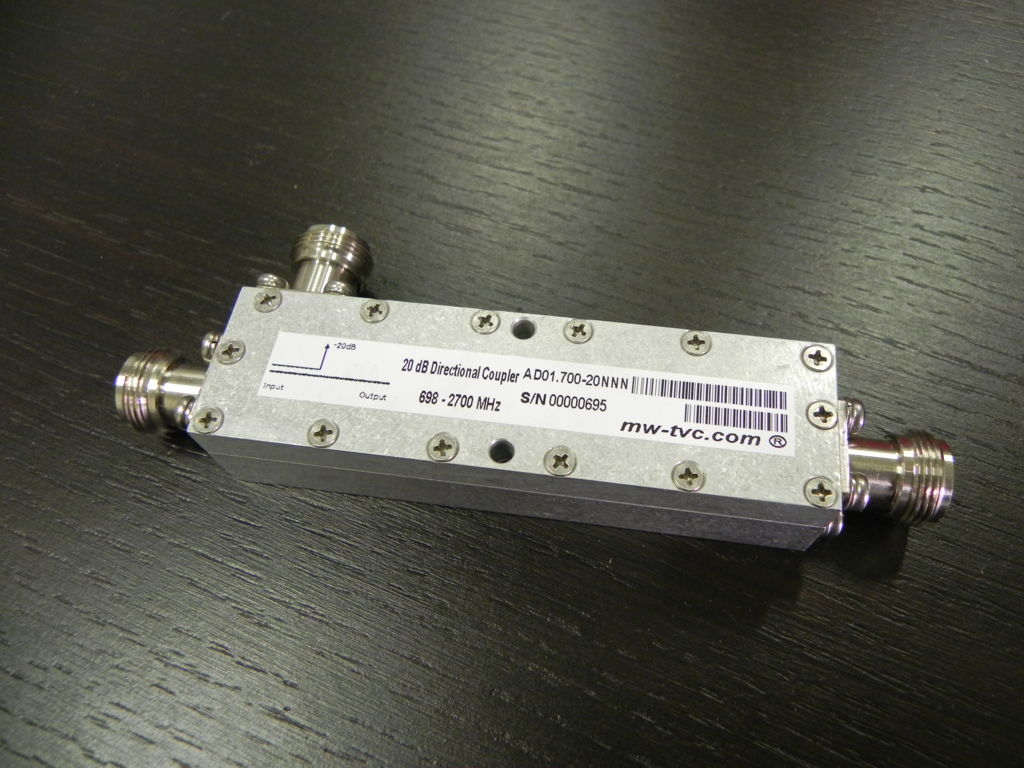

AD01.700-06NNN
AD01.700-10NNN
AD01.700-20NNN




DAS directional couplers

  • 698 – 2700 MHz
  • 6, 10 & 20 dB coupling values
  • 50 W average power
  • RoHS compliant
  • VSWR 1.25:1 max
  • N connectors




  DAS directional coupler

  PDF



For any specific request please send us your requirement at  This email address is being protected from spambots. You need JavaScript enabled to view it.
