Channel filters and circulators for Long Haul and Short haul radios 4-13 GHz (LH) & 15-42 GHz (SH)
|
Some of our products....
| Products code | Description | Datasheet | |
|

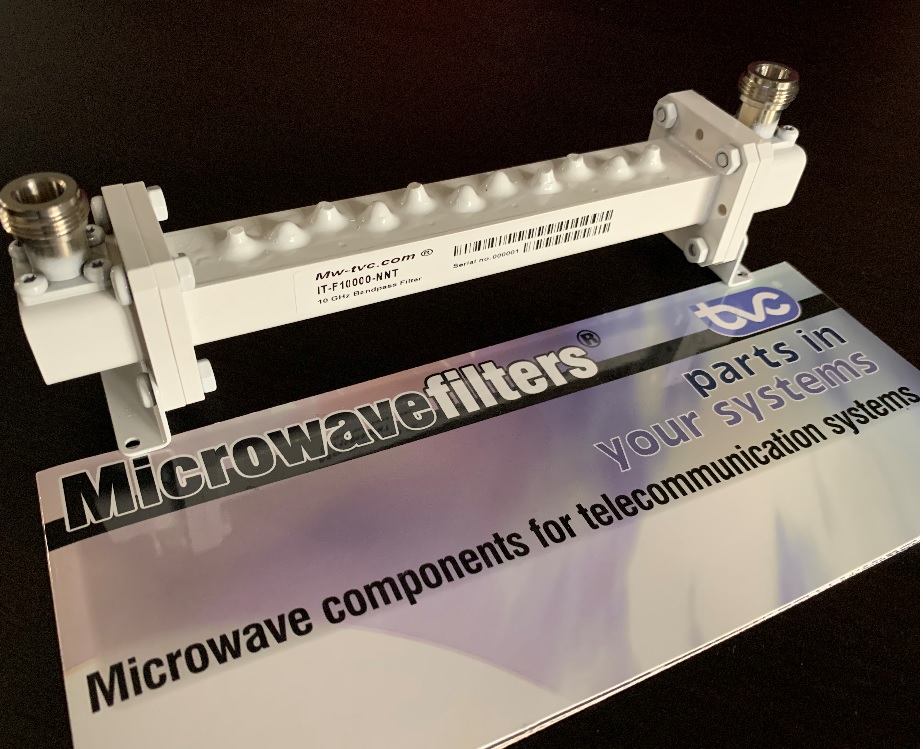

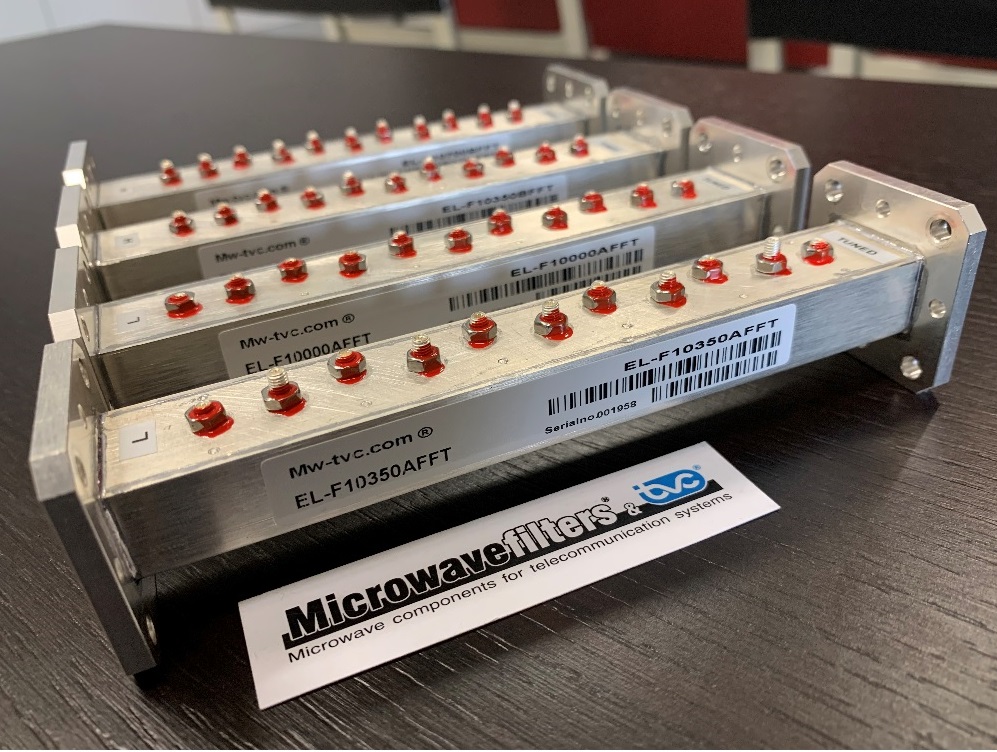

10 GHz Channel Filters (BW 28 MHz) WR75 Wave guide, 5 Poles IL ≤ 1.5 dB in Pass-band |
 |
 |
|
|

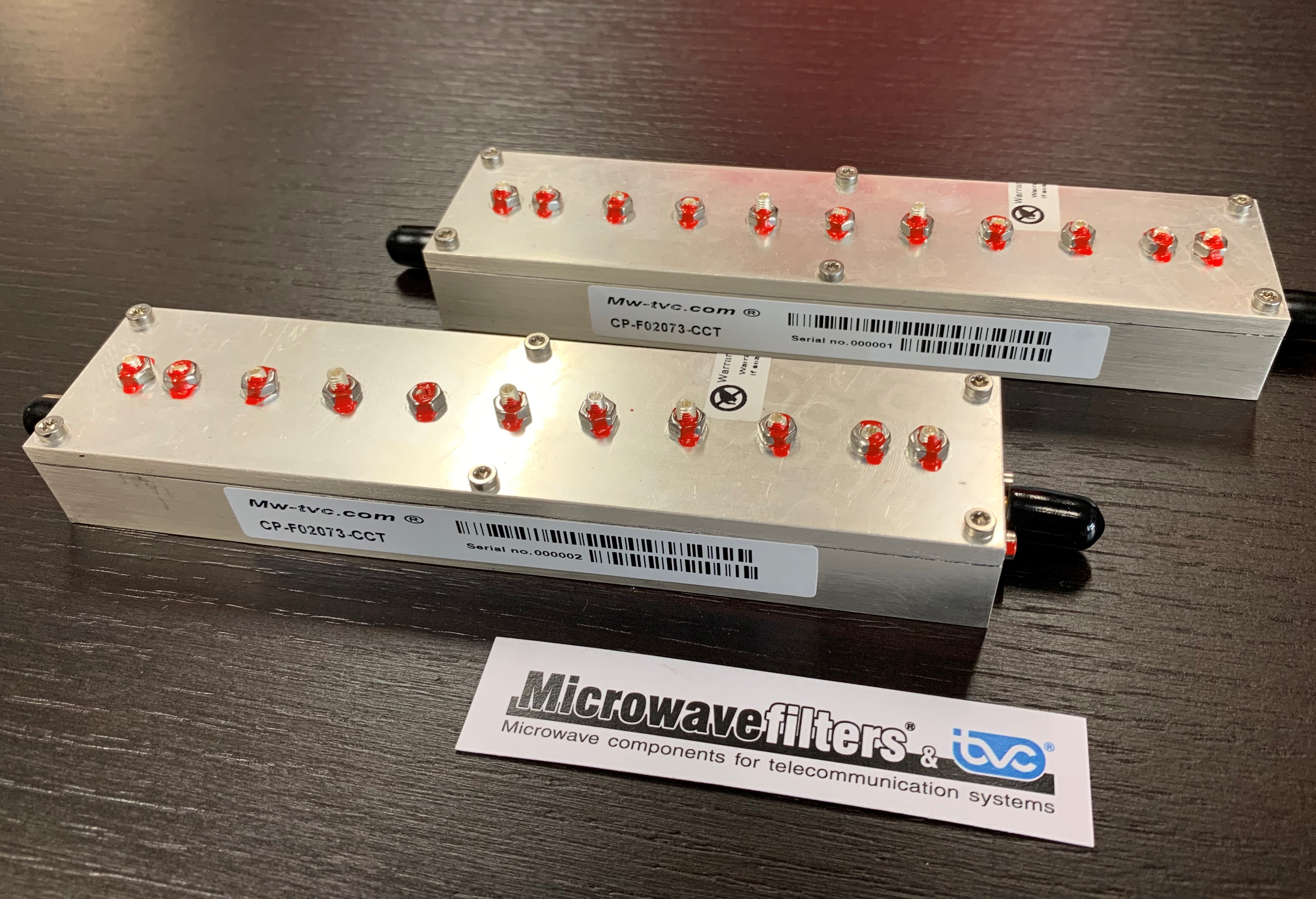

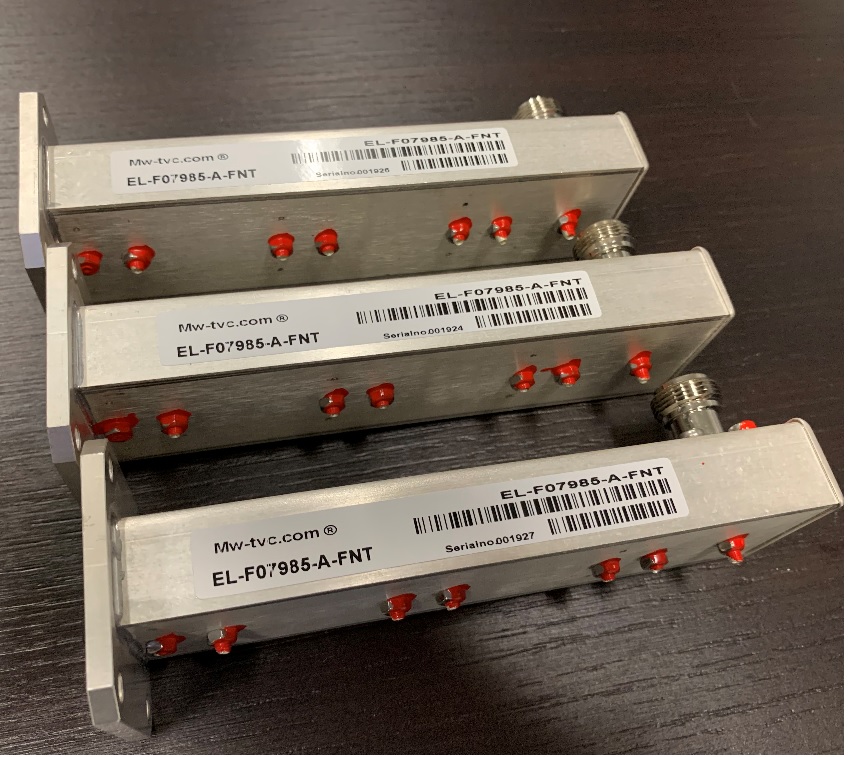

8 GHz Bandpass Filters BW=10 MHz IL ≤ 1.5 dB in Pass-band |
 |
|
|
|

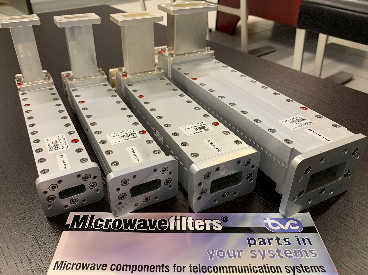

Good Isolation & VSWR Bandwidth 7.0 ÷ 8.5 GHzz 3-dB Waveguide Coupler (Splitter) In R84 (WR112) |
 |
|
|
| MW-C07800-FFFT |
Good Isolation & VSWR Wide Band (7.1 ÷ 8.5 GHz) Flat Response & Low Loss 6-dB Waveguide Coupler In R84 (WR112) |
 |
|
| MW-C06400-FFFT |

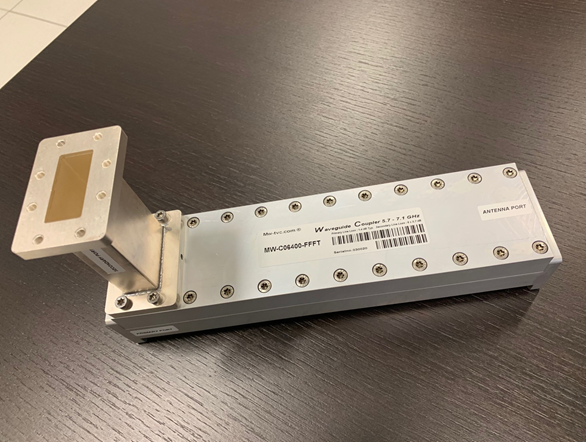

Good Isolation & VSWR Wide Band (5.7 ÷ 7.1 GHz) Flat Response & Low Loss 6-dB Waveguide Coupler In R70 (WR137) |
 |
|
| VA-WRxx_xxdB |

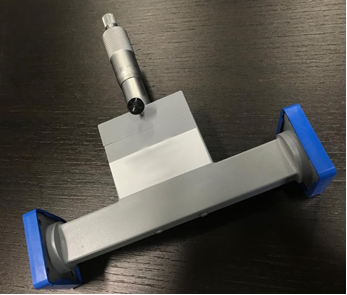

VARIABLE ATTENUATOR From 10 dB to 40 dB |
 |
|
|
MW-NC3-04 MW-NC3-05 MW-NC3-06L MW-NC3-06U MW-NC3-07 MW-NC3-08 MW-NC3-10 MW-NC3-11 MW-NC3-13 |
Long Haul WG circulators 4 - 13 GHz
|
|
|
|
N04L28/37/40/56 N05L28/37/40/56
N06L28/37/40/56 N06U28/37/40/56 N07L28/37/40/56 N08L28/37/40/56 N10L28/37/40/56 N11L28/37/40/56 N13L28/37/40/56 |

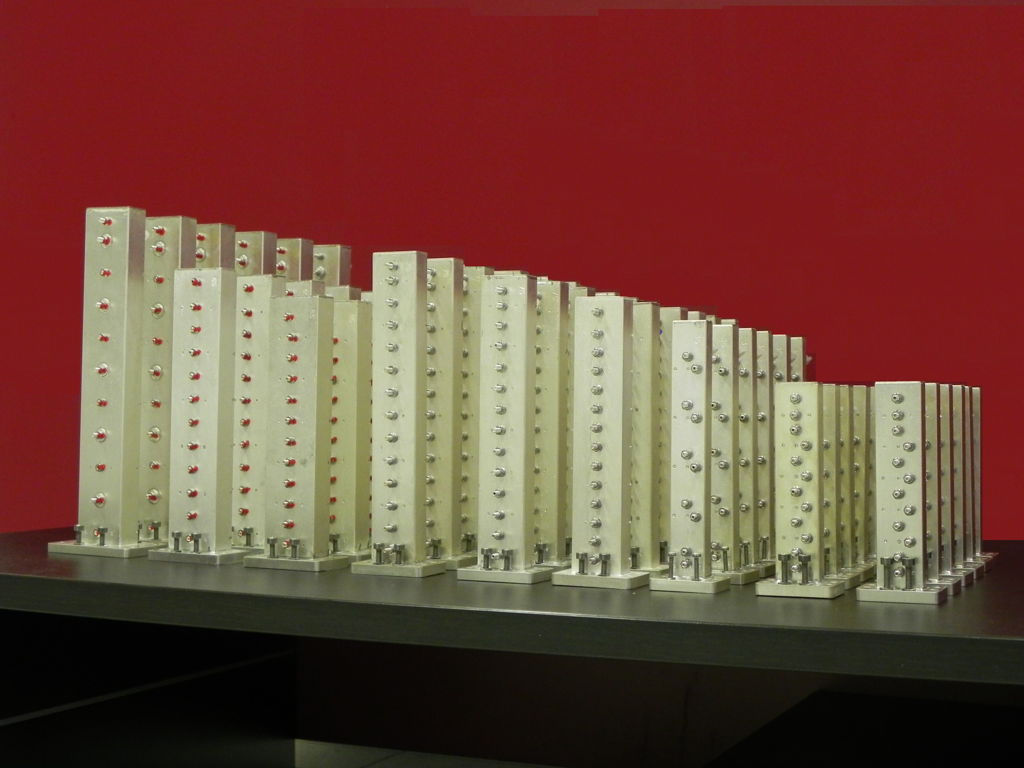

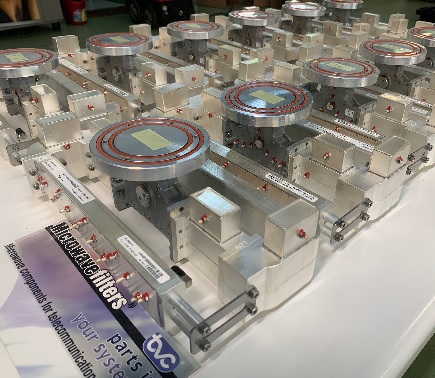

Long Haul WG Channel filters 4 - 13 GHz, INVAR made |
|
|
| MW-F37700-FFT |

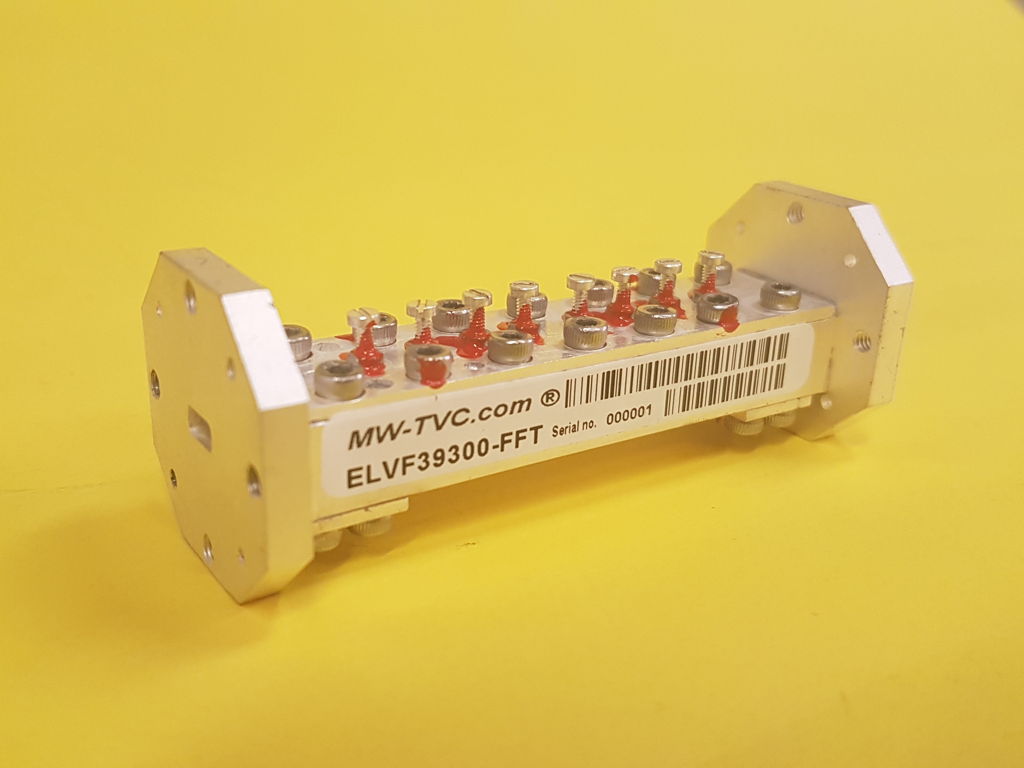

Band pass filter 37 - 38.4 GHz |
|
|
|
MW-DW14.95-5ISFFFT |

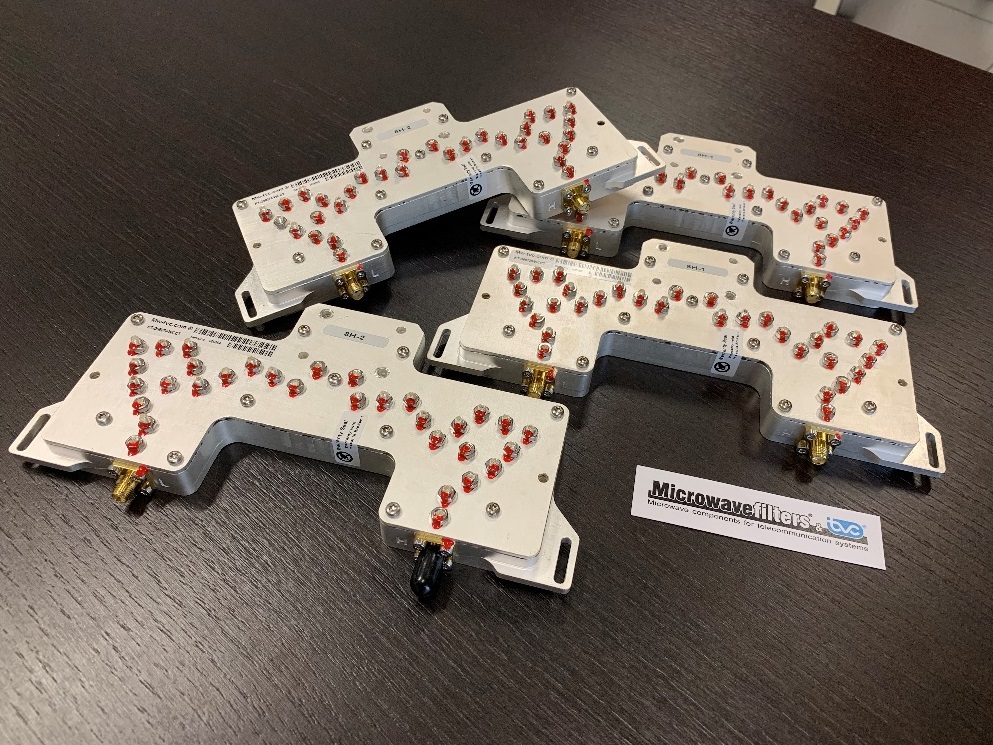

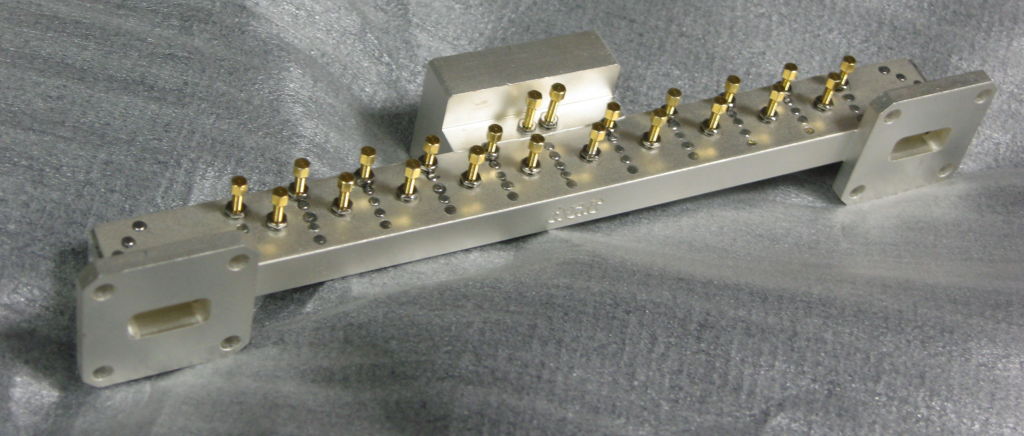

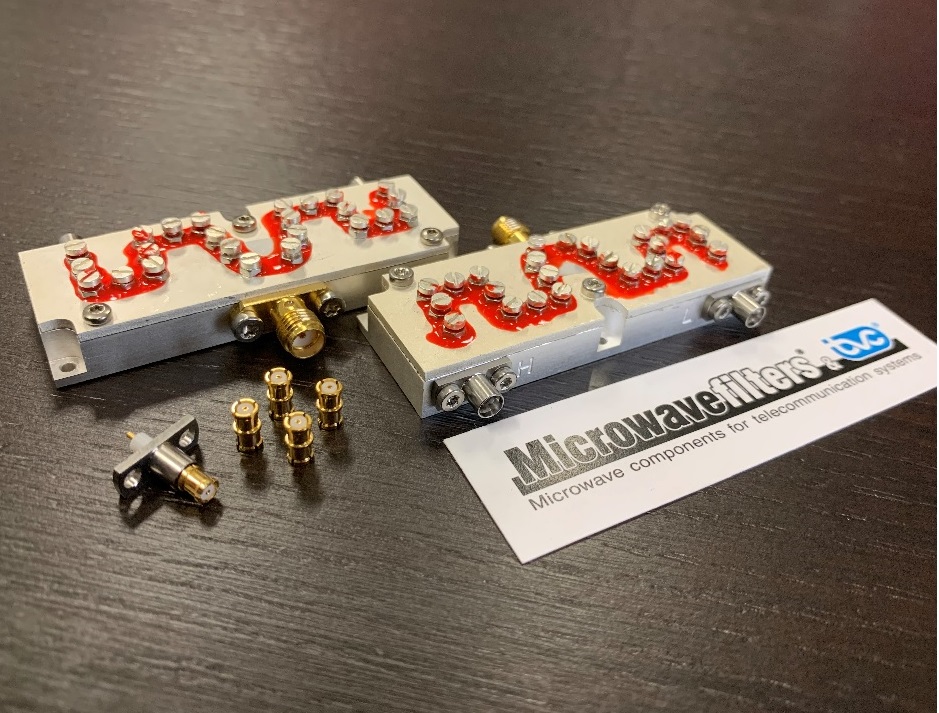

15 GHz diplexer narrow band Frequency range 14.5 – 15.4 GHz
Bandwidth 28 MHz (narrow band)
|
|
|
|
MW-NS527-906/61-001
MW-NS527-906/61-002 |

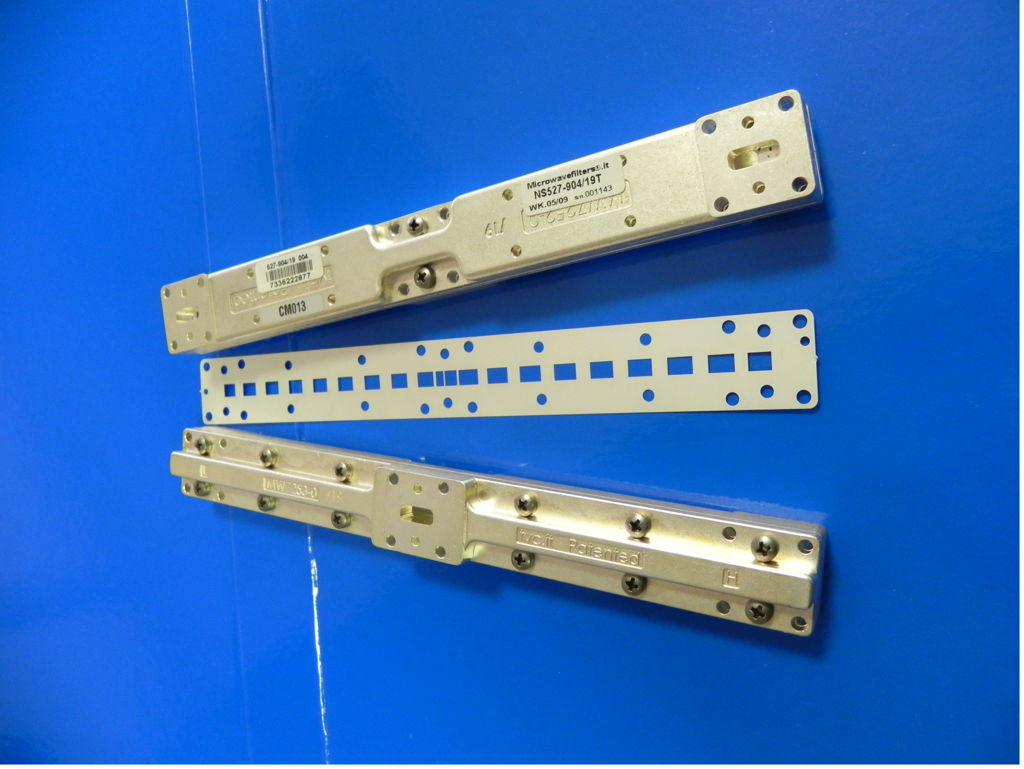

26 GHz diplexer wide band in Metal insert 24.516 – 25.056 GHz ext. 001
25.524 – 26.064 GHz
Shifter 1008 MHz
24.938 – 25.478 GHz ext. 002
25.946 – 26.486 GHz
Shifter 1008 MHz
|
|
|
|
MW-NS5602667-001
MW-NS5602667-002
MW-NS5602667-003
|

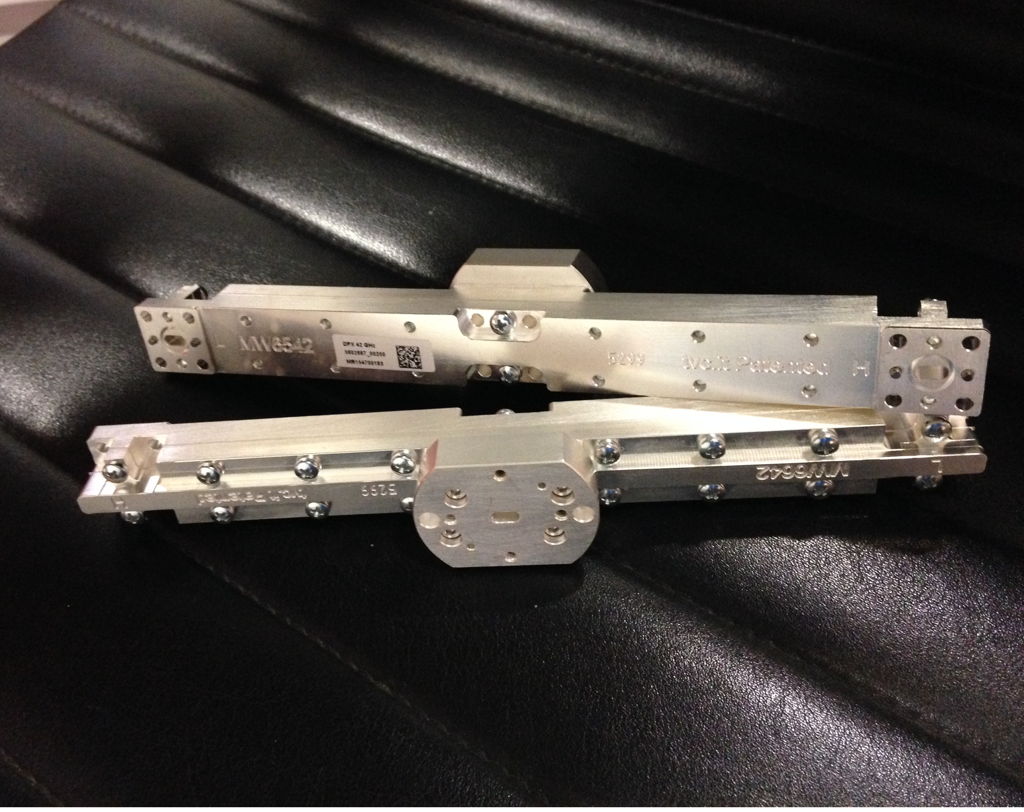

42 GHz diplexer wide band in Metal insert 40.550 – 41.098 GHz
42.050 – 42.598 GHz
Shifter 1500 MHz
40.983 – 41.531 GHz
42.483 – 43.031 GHz
Shifter 1500 MHz
41.416 – 41.964 GHz
42.916 – 43.464 GHz
Shifter 1500 MHz
|
 |
|
|
NC4-05 NC4-06L NC4-06U NC4-08 NC4-11 |
4Ports circulators
4-11GHz from R48 to R110
High isolation and Return loss
Insertion loss < 0.2dB
|
 |
|
|
MW-D02155-NCCT
|
2 GHz diplexer
BW 85 MHz
Shifter 175 MHz
Isolation 80 dB typical |
|
|
