80GHz OMT


New E-Band focused 5G Diplexer

RL≥18 dB
Low IL (typical 0.5 dB)
No tuning, very light



Some of our products....

Products code Description Datasheet

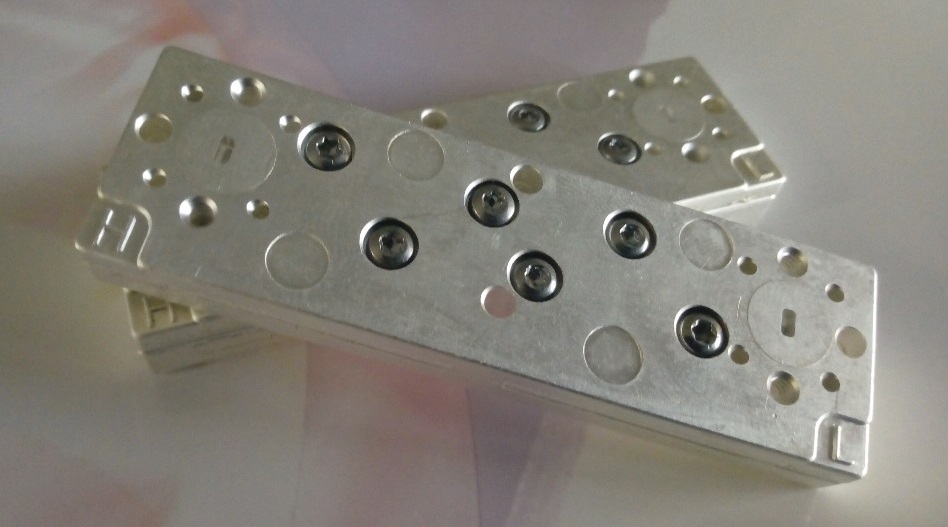

New E-Band focused 5G Diplexer

RL≥18 dB
Low IL (typical 0.5 dB)
No tuning, very light
Includes BSFs for improved selectivity


20160202 155829

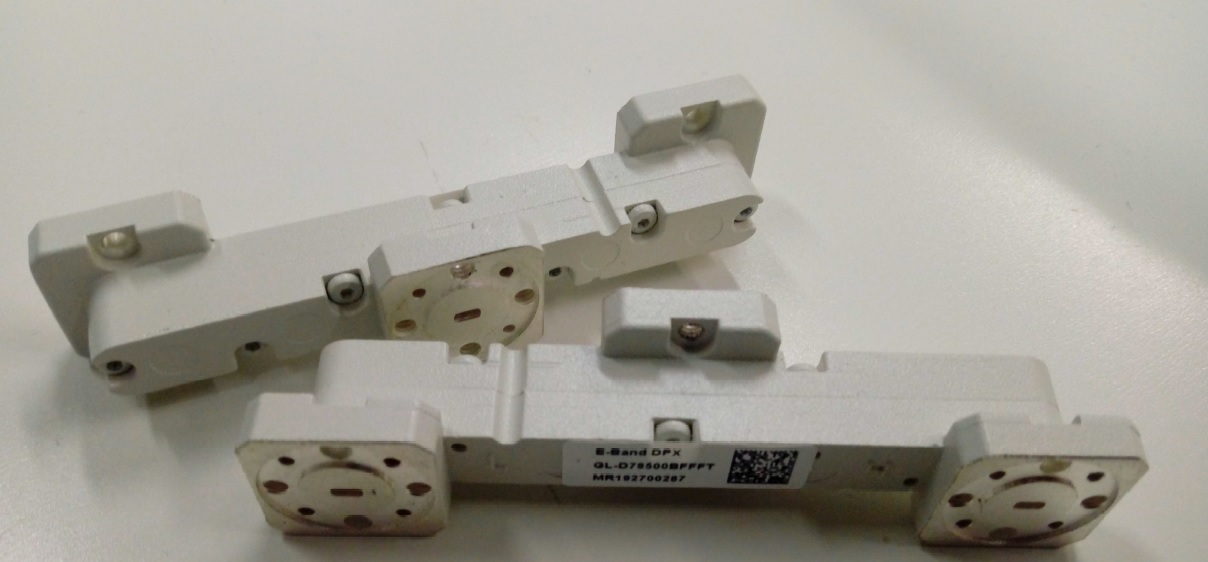

New E-Band Diplexer

RL≥18 dB
Low IL (typical 0.5 dB)
No tuning, very light
Includes BSFs for improved selectivity


20160202 155829






New E-Band Diplexer

In Metal Insert (No Tuning)
Isolation≥60 dB, IL≤1.0 dB
With BSFs forimproved
selectivity. Focused on 5G


PDF

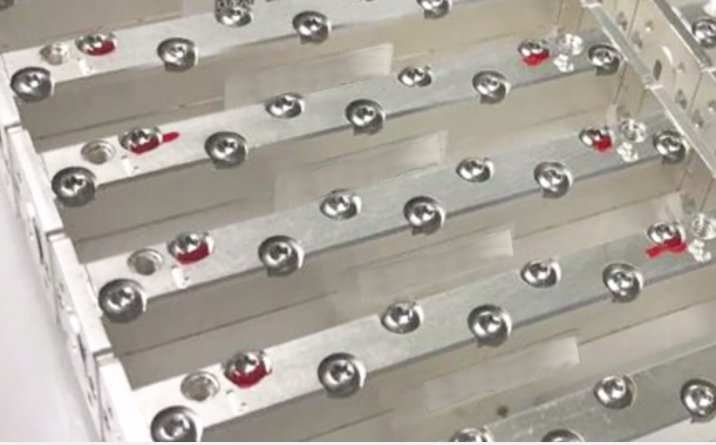

  NEW V-Band diplexer

BW 1900 MHz Shifter 4.3 GHz Isolation > 100dB
RL>14 dB, IL<1.6 dB
No tuning


V band diplexer

VIDEO

MW-D60500-FFFT

V-Band diplexer

BW 500 MHz Shifter 1.3 GHz Isolation > 60dB
RL>14 dB, IL<1.6 dB
No tuning

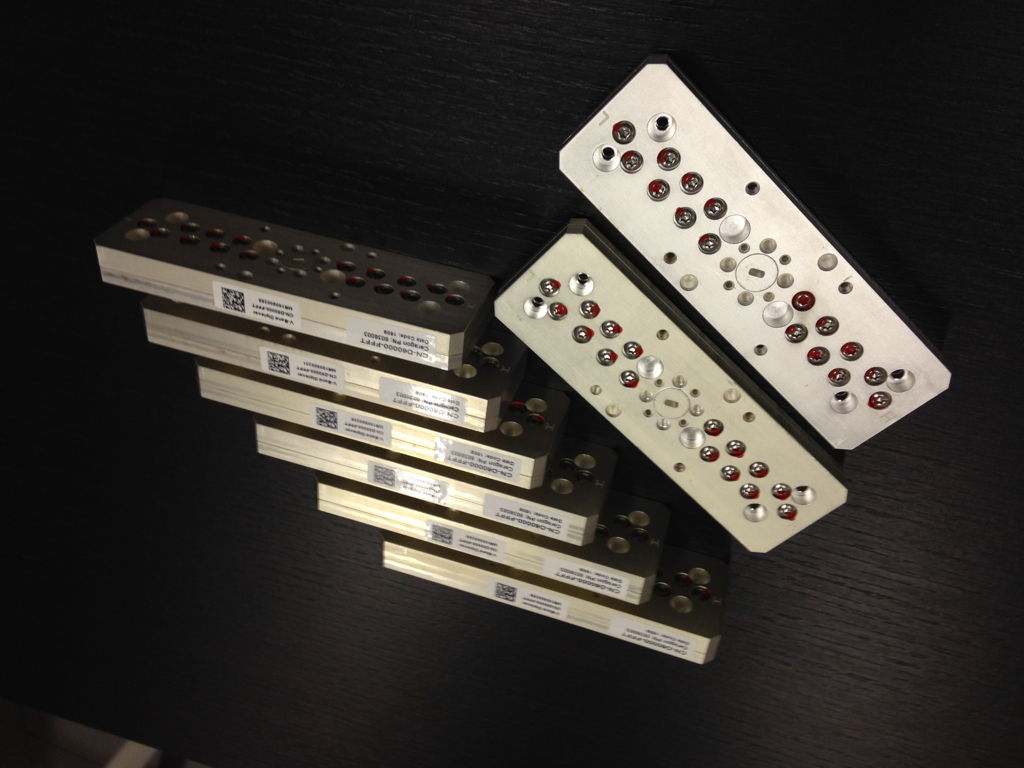

V band diplexer

 PDF
VIDEO
  MW-O78500-FFFT

OMT 80 GHz

Bandwidth 71-86 GHz
Isolation > 21 dB, IL < 1.8 dB
Input: WC.1250 circular waveguide
Outputs: WR12 rectangular waveguides

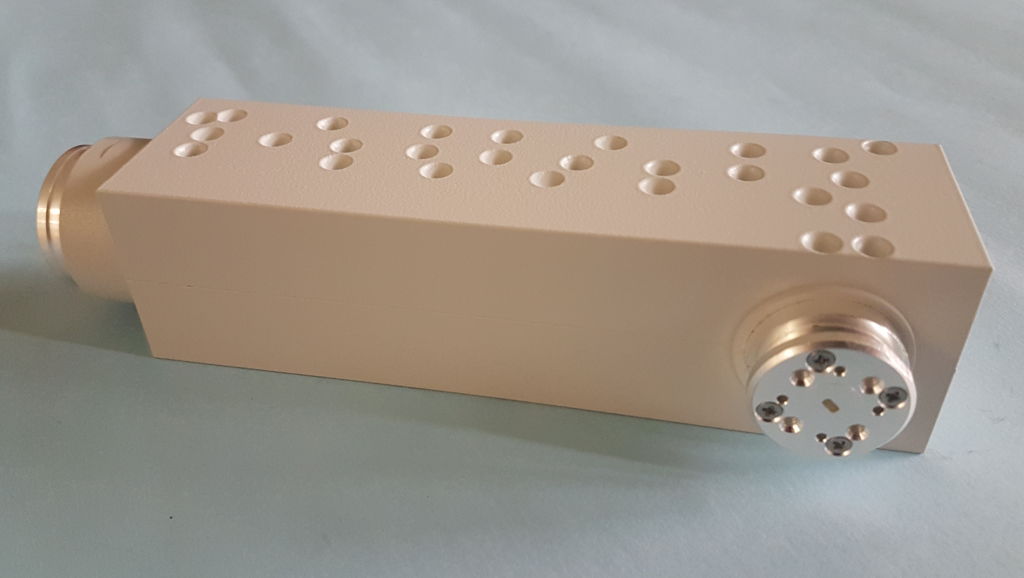

80GHz OMT

 PDF

 MW-D78500AFFFT

 E-Band diplexer

 BW 5 GHz, Shifter 10 GHz,  Isolation > 60dB
 RL>14 dB, IL<1.2 dB
 No tuning

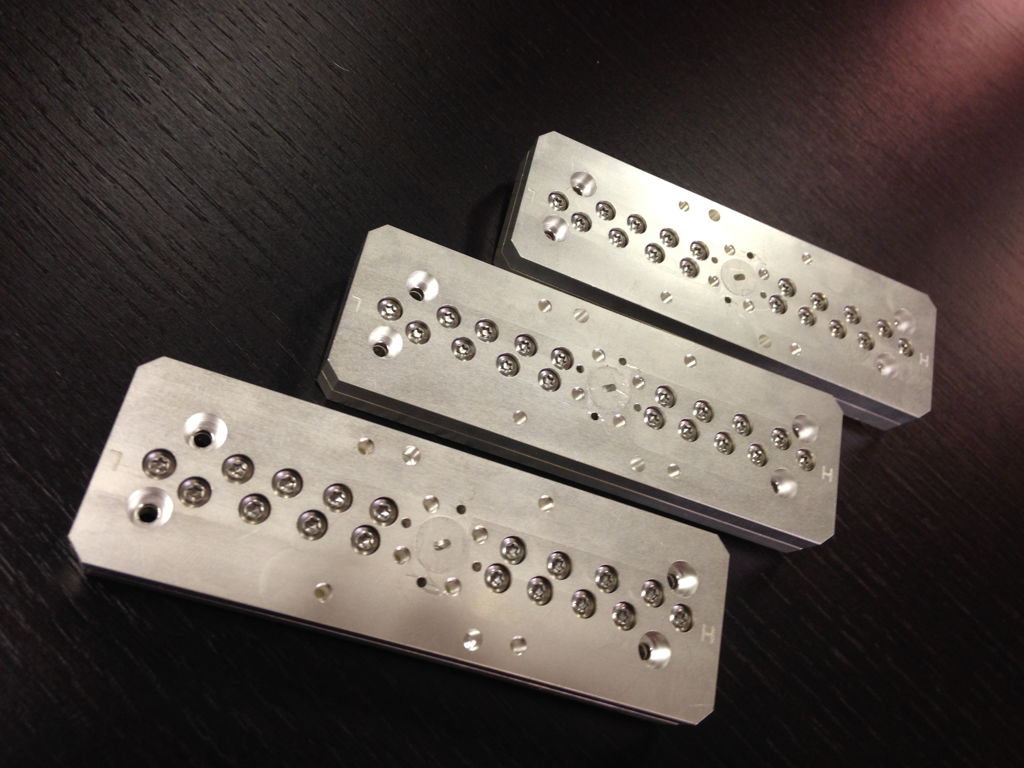

 E band C

 PDF
VIDEO

 MW-D78500BFFFT

E-Band diplexer

BW 5 GHz, Shifter 10 GHz Isolation > 60dB
RL>15 dB, IL<0.7 dB
No tuning

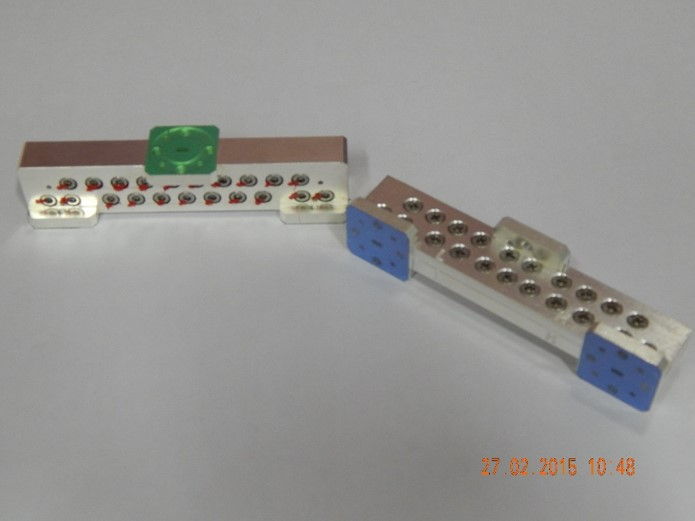

  Google E band

  PDF



For any specific request please send us your requirement at  This email address is being protected from spambots. You need JavaScript enabled to view it.
