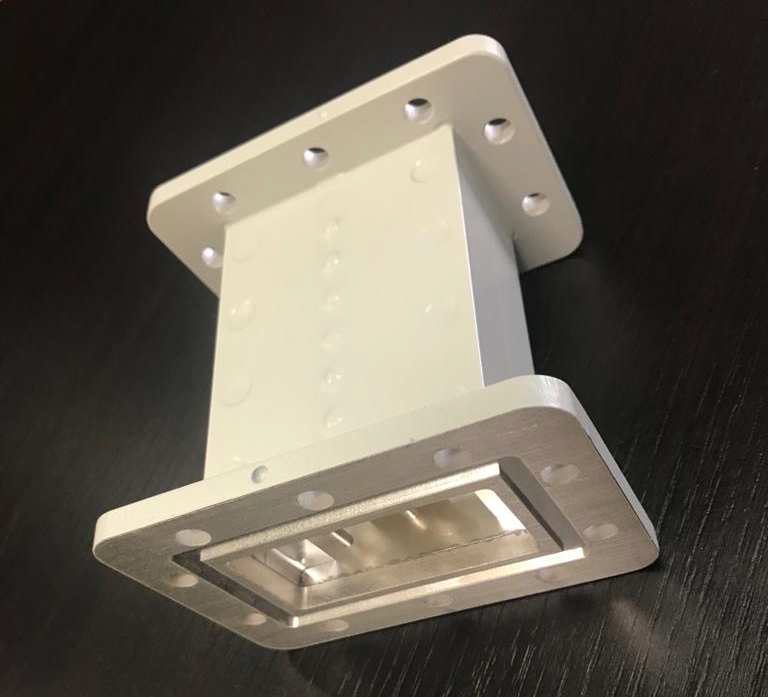

BandPassFilters WR229

WR229 Bandpass Filter

Very Compact (Length 100 mm)
BW 3600 – 4200 MHz




Some of our products....

Products code Description Datasheet



MW-F03900-FFT




WR229 Bandpass Filter

BW 3600 – 4200 MHz
Very Compact (Length 100 mm) and
Low Loss (IL ≤ 0.5 dB)

 BandPassFilters WR229



PDF

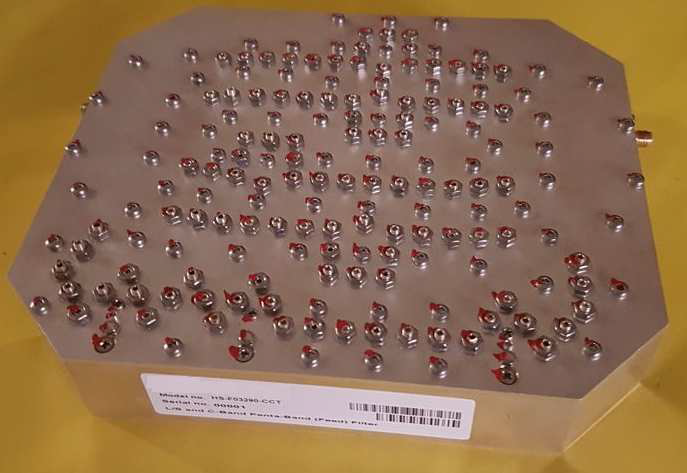

MW-F03290-CCT

Pentaplexer

With Filters in L,S & C Bands
Compact & High Rejection

 BandWidth 600 800 MHz



PDF

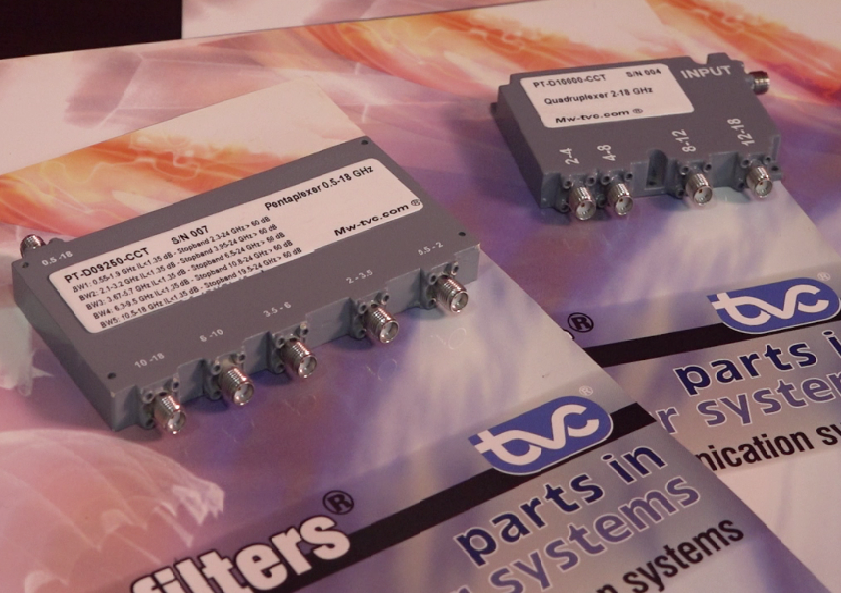

PT-D10000-CCT

&

PT-D09250-CCT



Quadriplexer 2-18 GHz

Pentaplexer 2-18 GHz

 BandWidth 600 800 MHz


VIDEO

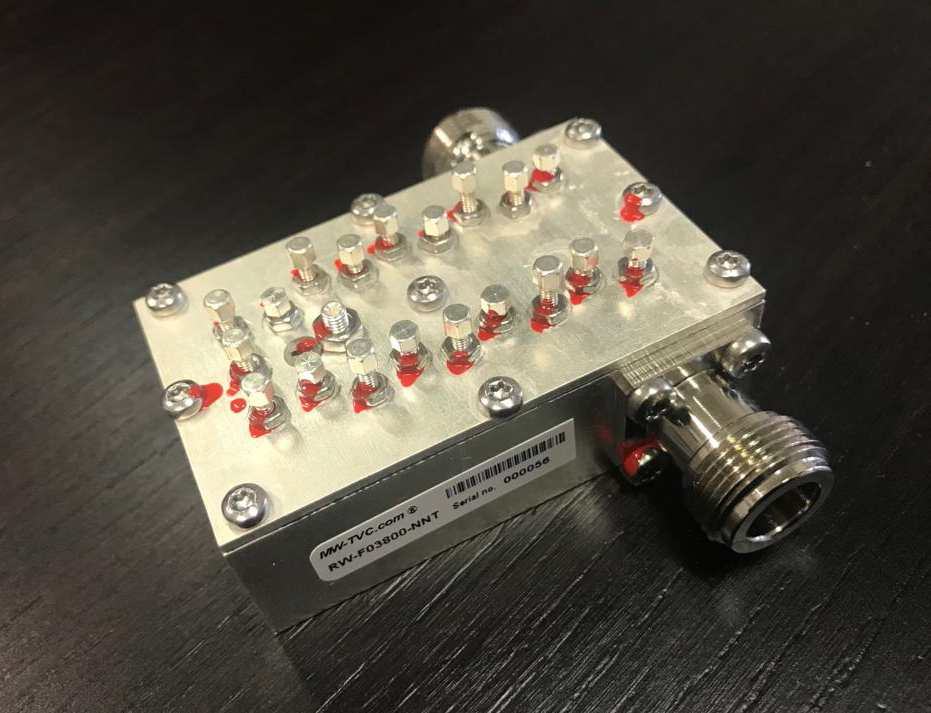

MW-F03800-NNT

&

MW-F03900-NNT



600-MHz & 800-MHz Bandwidths

BW 3400 – 4200 MHz (MW-F03800-NNT)
BW 3600 – 4200 MHz (MW-F03900-NNT)
Very Compact and Low Loss

 BandWidth 600 800 MHz



PDF

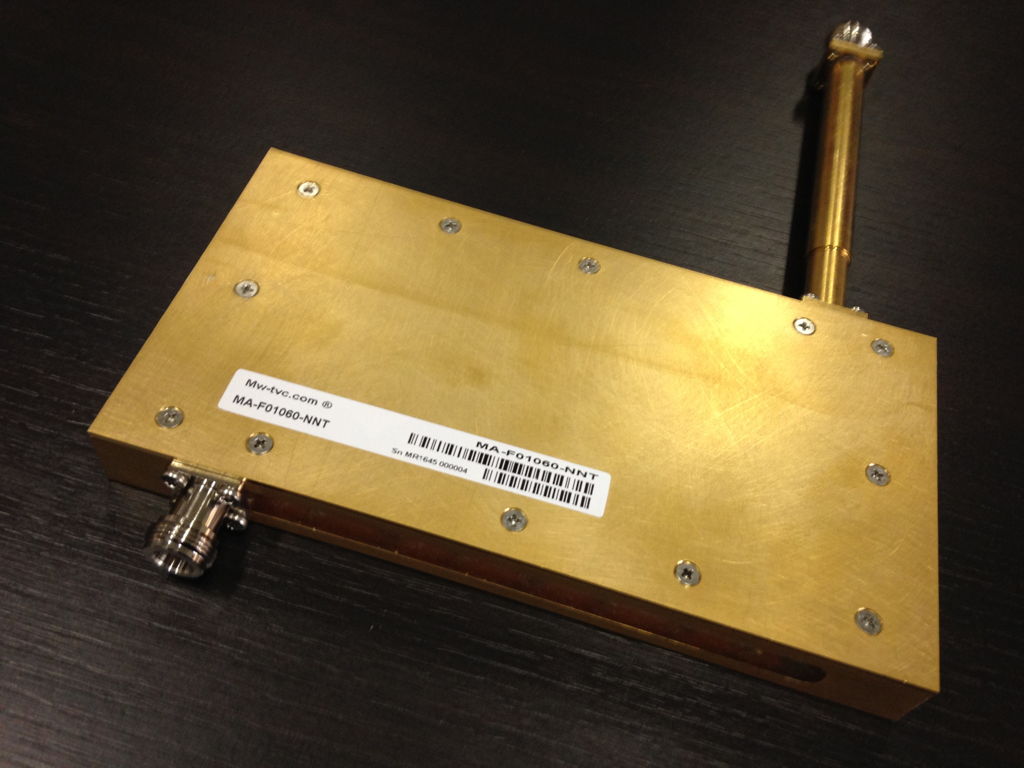

MW-F01060-NNT






Interdigital Bandpass Filter

BW 1020 – 1100 MHz
Attenuation > 45 dB up to 3rd Harmonic

 Interdigital



PDF

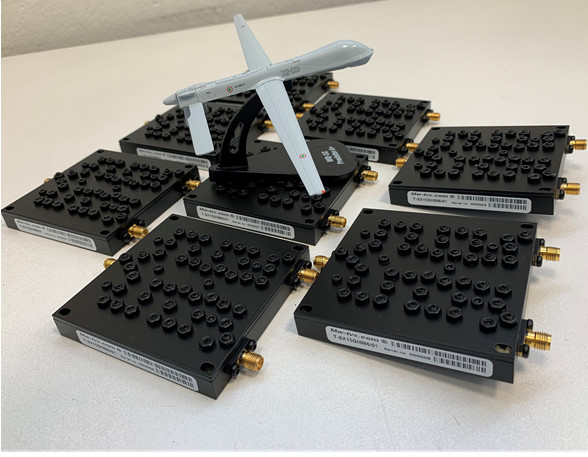

MW-15G-0886/01



15 GHz(Ku-Band) Diplexer
for UAV systems

Compact, with low loss and high isolation

Low Filter Bandwidth 14.4 – 14.83 GHz
High Filter Bandwidth 15.15 – 15.35 GHz



IMG 0943

 PDF

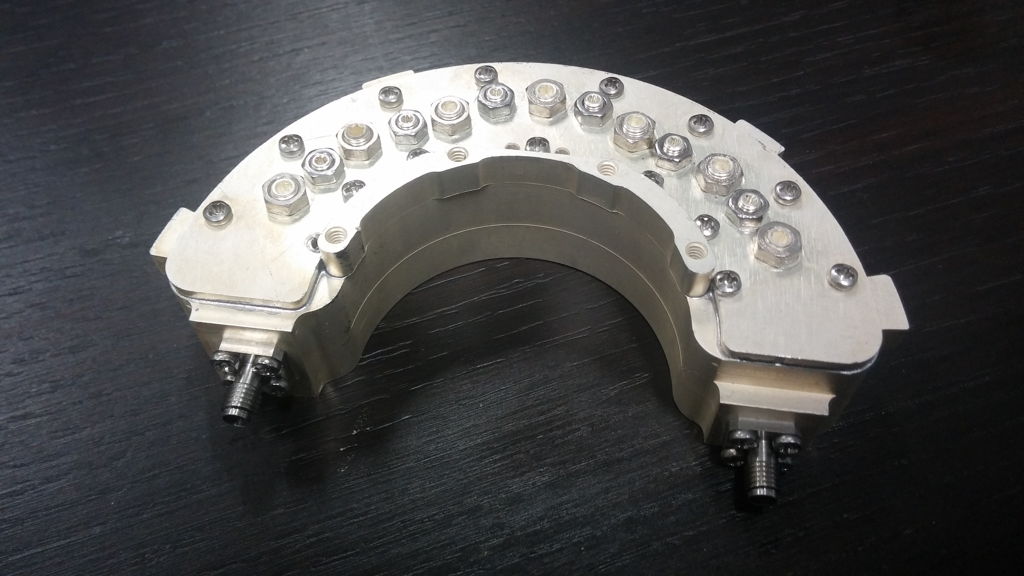

MW-F01692-AAT

GPS Extended Filter

Pass Band 1624 – 1760 MHz

GPS

 PDF

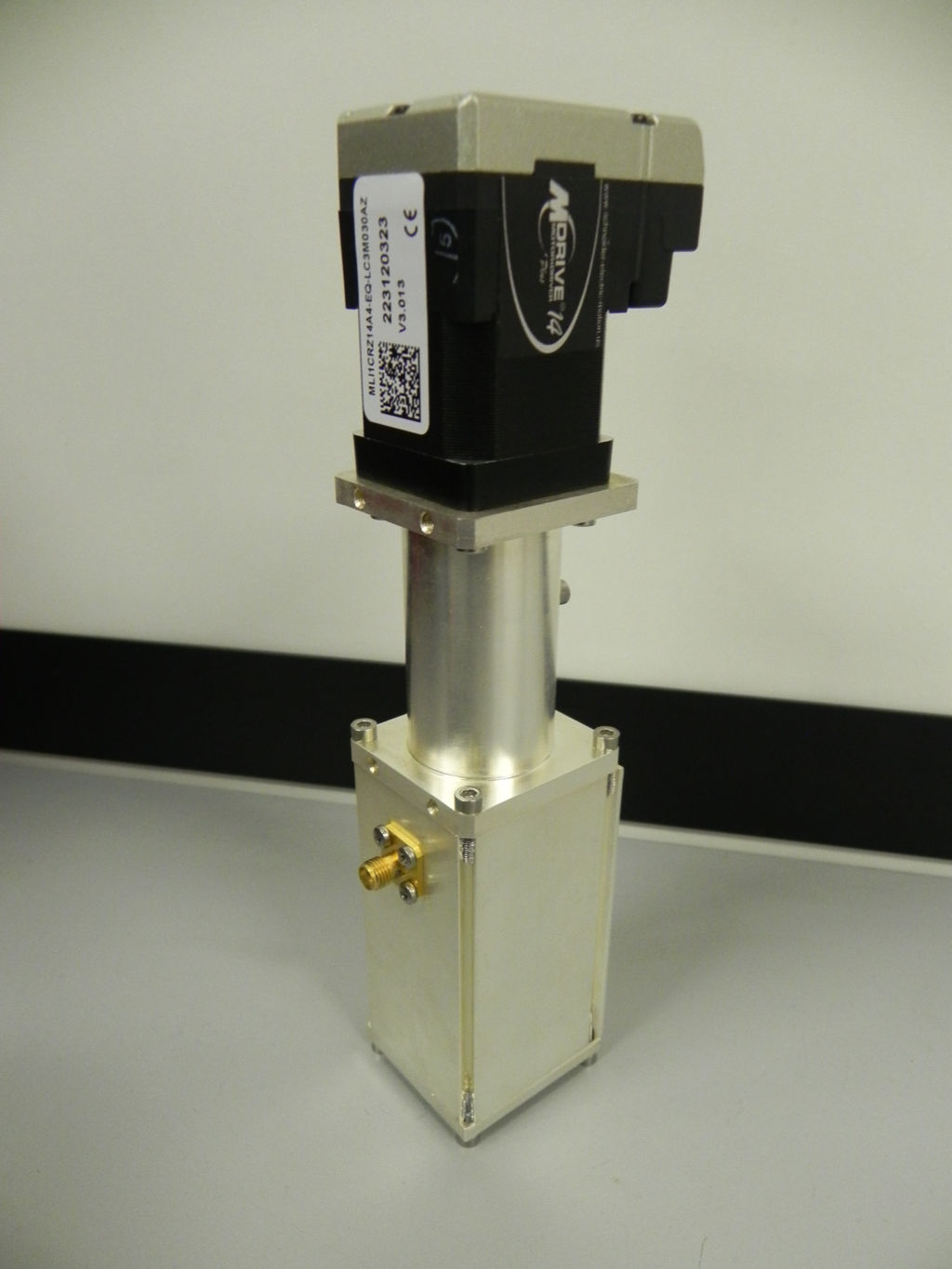

 MW01.0875-1ASCCT






L-Band Single-cavity Filter

Low tuning frequency 1.05 GHz
High tuning frequency 1.25 GHz
Tuning range over 200 MHz

 aa

 PDF

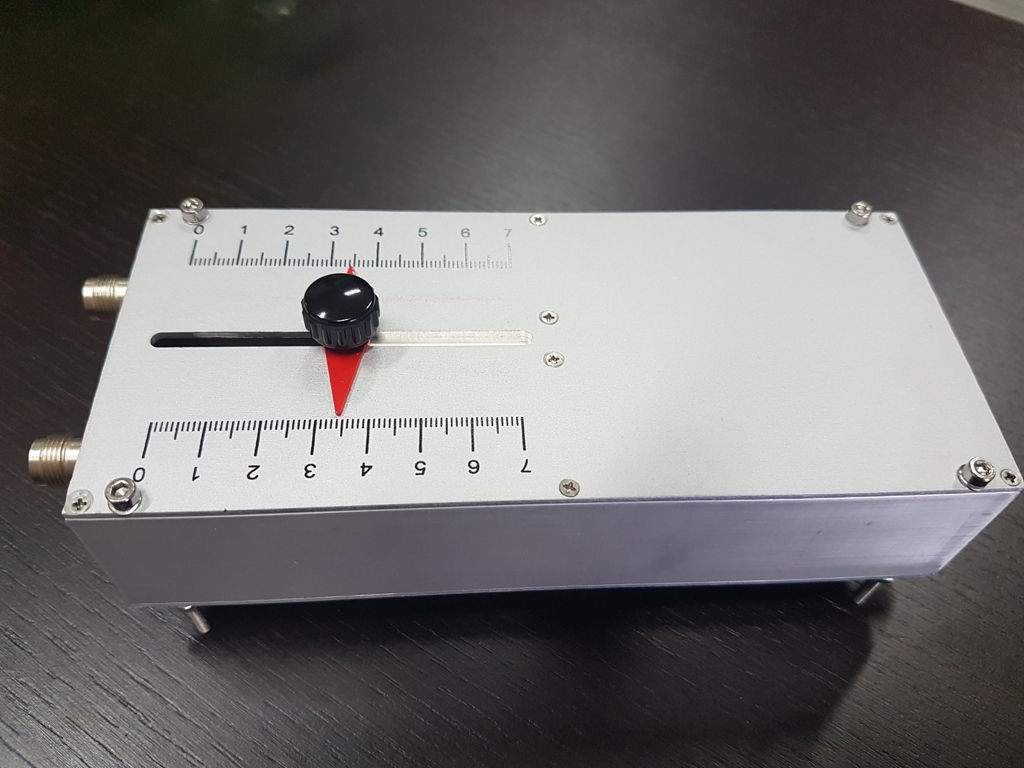

MW-P00100-LLLT






Phase Shifter
108-112 MHz Double Synchronous

 bb  PDF

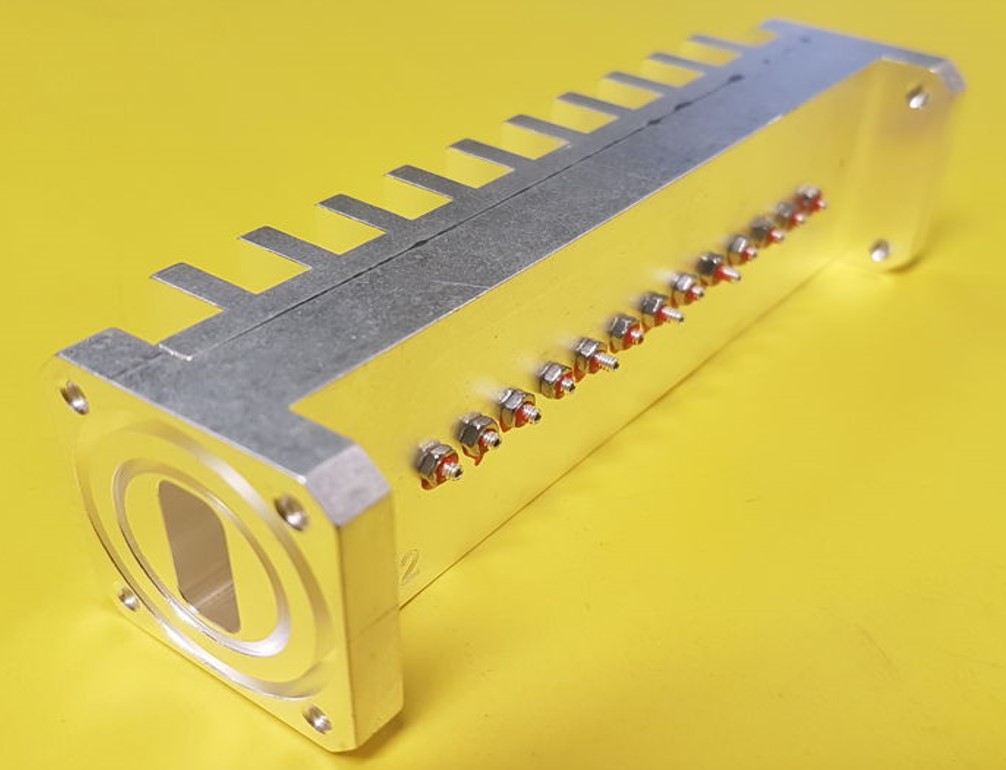

MW-F14970BFFT
MW-F15330BFFT
Waveguide band pass filter
14.89 - 15.05 GHz  (MW-F14970BFFT)
15.25 - 15.41 GHz  (MW-F15330BFFT)
500w CW

  15GHz BPF

  PDF

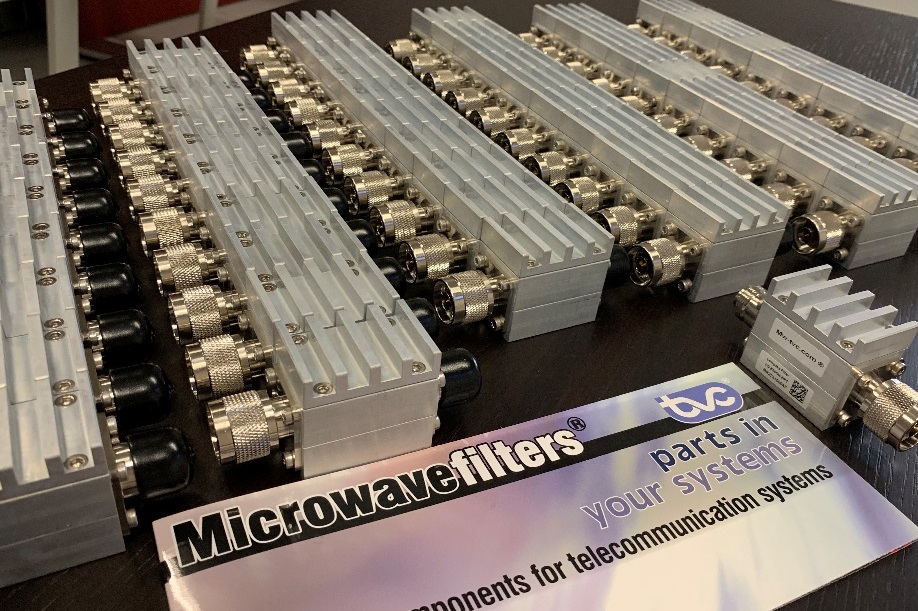

High-Power Lowpass Filter

From DC to 1.09 GHz

  High_Power_Lowpass_Filter

  PDF


UHF Bandpass Filter

(BW 33 MHz)

Vibration & Shock Resistant

Power Handling of 40W

TNC Female Connectors

IL ≤ 0.7 dB in Pass-band

For Outdoor Use – IP65

  300MHz_UHF_BPF_-_for_Outdoor_IP65

  PDF


UHF Bandpass Filter 450MHz

(BW 40 MHz)

Vibration & Shock Resistant

Power Handling of 70W
N Female Connectors
IL ≤ 0.7 dB in Passband

 450MHz_UHF_BPF PDF

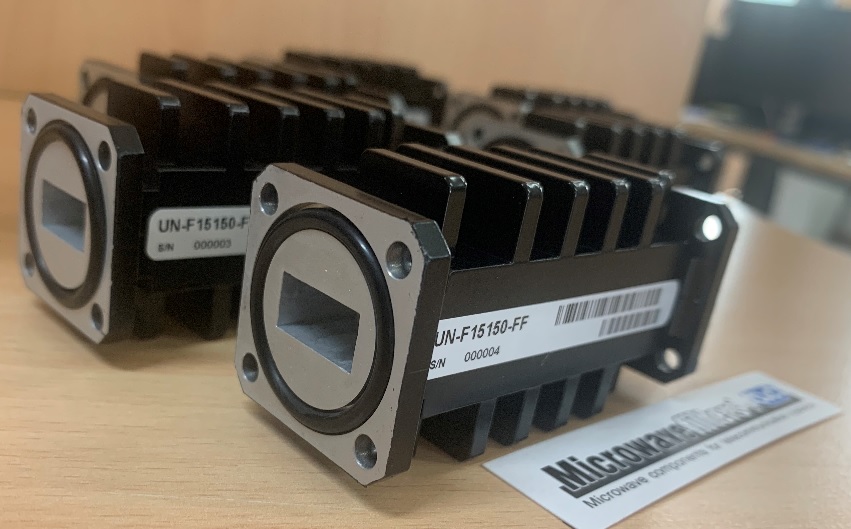

High-Power Lowpass Filter

Rejection from 29.6 GHz to 45.6 GHz

  High_Power_WR62_Waveguide_Lowpass_Filter

  PDF



For any specific request please send us your requirement at  This email address is being protected from spambots. You need JavaScript enabled to view it.
